Place of Origin : Henan, China
Shape : Brick
Material : Alumina Block
SiO2 Content (%) : 0.1Max
Al2O3 Content (%) : 45%Min
MgO Content (%) : little
CaO Content (%) : little
Refractoriness (Degree) : Common (1580°< Refractoriness< 1770°)
CrO Content (%) : little
SiC Content (%) : little
Model Number : GL-0.5~GL1.3
Brand Name : Hongtai
Application : Industrial Furnaces
Product name : light High Alumina Brick
Color : Light Yellow
Size : 230x114x65mm
Raw material : High Alumina Bauxite
Usage : Furnace Liner
Keyword : Light Weight Insulation Firebrick
Sample : Freely Provided
Certificate : ISO9001
Packing : Wooden Pallets Covered
Supply Ability : 60000 Ton/Tons per Month
Price : $350.00 - $400.00/tons

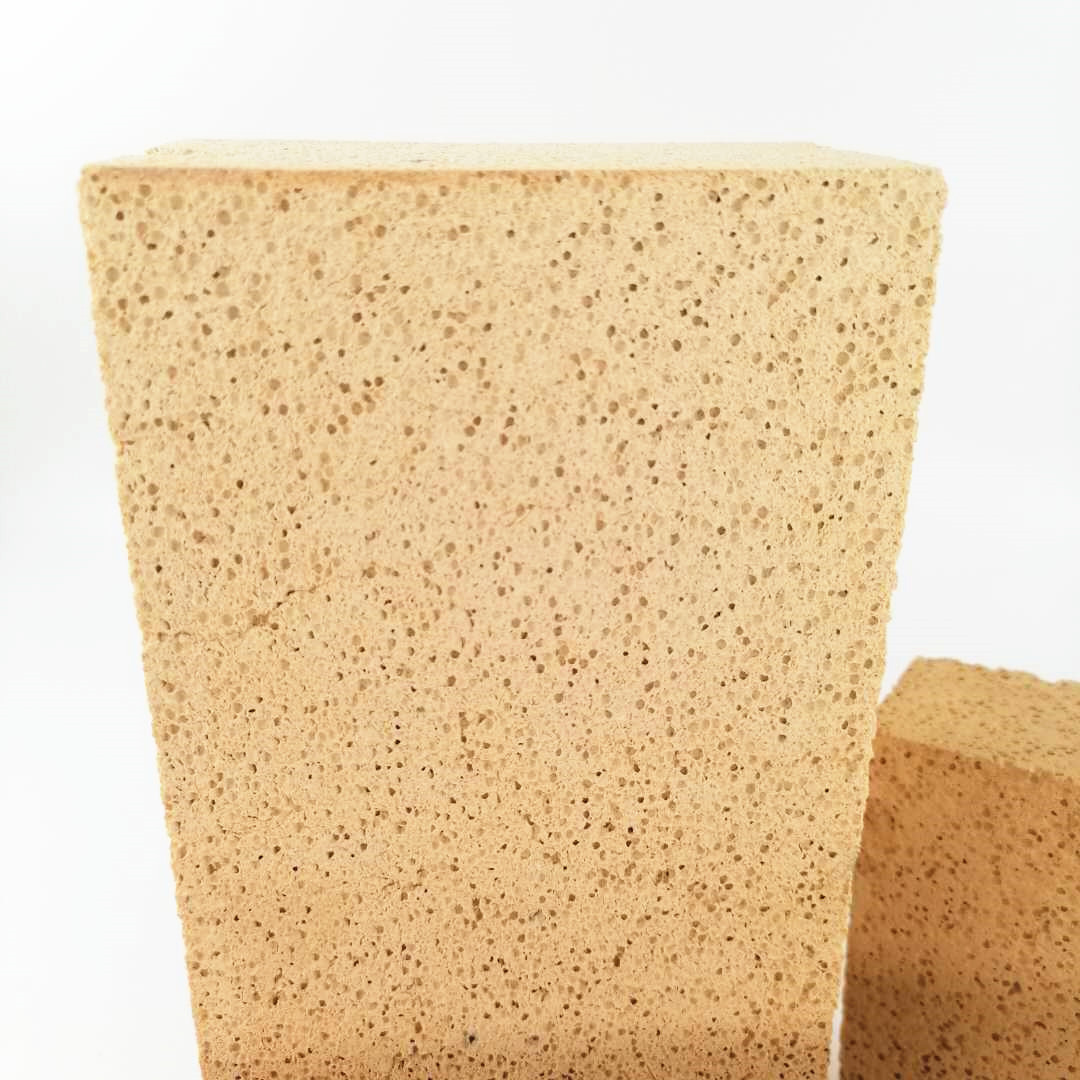

Refractory bricks high aluminum poly light ball insulation brick
With small volume density,low thermal conductivity,excellent insulation performance and stable quality,the high aluminum poly light insulation brick can be used for lining or insulation of high temperature furnace.The insulation brick is a kind of light refractory material consisting of mullite and glass phase or corundum.The alumina content is above 48%,volume density 0.4~1.35g/cm3, volume density of porosity 66%~73%,the compressive strength 1~8MPa,good performance in thermal shock resistance.Generally mix the high aluminum bauxite with some clay,grind the mixture and use the gas evolution method or the foam method to cast and form,then put the bricks in the kiln of 1300~1500C sintering and finished.When getting in touch with the flame,the temperature of the surface is not allowed to be above 1350C.
Refractory bricks high aluminum poly light ball insulation brick
Item | LG-0.5 | LG-0.6 | LG-0.7 | LG-0.8 | LG-1.0 | LG-1.2 | LG-1.3 |
Bulk Density(g/cm3) ≤ | 0.5 | 0.6 | 0.7 | 0.8 | 1 | ||
Compressive strength(Mpa) ≥ | 1.0 | 1.5 | 2.0 | 3.0 | 4.0 | 4.5 | 5.0 |
Rebirth line change rate ≤2 % | 1260 | 1260 | 1260 | 1300 | 1300 | 1300 | 1300 |
TRS,Times (1100℃,water ) | 8 | 8 | 8 | 10 | 15 | 15 | 15 |
Thermal Conductivity 350±25℃(w/k*m) | 0.23 | 0.26 | 0.28 | 0.29 | 0.3 | 0.33 | 0.36 |
Al2O3(%)≥ | 45 | 45 | 50 | 50 | 50 | 50 | 50 |
Fe2O3(%)≤ | 2.5 | 2.5 | 2.5 | 2.6 | 2.8 | 2.8 | 2.8 |
Iron&steel making industry:Blast furnace,hot blast furnace(stove),pellet shaft furnace,hot metal ladle,steel ladle, tundish,heating furnace,soaking pit furnace,heat treatment furnace,refining furnace,reheating furnace,metal mixter furnace,annealing furnace, cupola furnace,electric arc furnace,induction furnace,AOD furnace,VOD furnace,etc thermal technology equipment.Non-ferrous Metal industry:Smelting furnace,refining furnace,reverberatory furnace,converter furnace. Building materials industry:Cement kiln,glass kiln,ceramic kiln,lime kilns,kiln car,tunnel kiln.
Henan hongtai kiln refractory co., LTD. is establised in 2012,located in Xinmi City, 40 kilometers southwest of Zhengzhou City in Henan Province, close to JingGuang,Longhai railway lines, with road transport facilities.Rich resoures of Refractory materials, adequate and qualified fuel in this area, provide unique conditions for refractory production,shipping and refractory industry development.
Henan hongtai kiln refractory co., LTD. has been always adhere to the principle of "quality first, credibility first, users first, quanlity and efficiency", has won the honor of "national measurement of qualified units""service standardization standards unit",which are recognized by higher office, was rated as Henan Province Contract and Keeping Promises Company, and has passed through ISO 9001:2000 Quality Mnagement System Confirmatrion, In order to meet the needs of market developemtn, we establish a "production, learning,research"strategic partnership with High Temperature Research Institute of Henann University of Science and Tchnology,and maintain long-term technical cooperation with Luoyang refractory research Institutions, the Iron and Steel Desigh Institute, Wuhan Iron and Steel Design Istitute and other scientific research institutions.Constantly adjust the production process,update product quality,built a solid foundation for wining a higher market hornor. Besides,all staff of high and low temperature furnace desigh, installation, manufacture, commissioning capacity of the company commit to every client: According to the different needs of users, we will thank all users' care by better service,higher product quality!
Production Equipments:
Test Equipments:
The products are sold all over the country, as far as Vietnam, India, Pakistan, kazakhstan, and other southeast Asian countries and regions.
![]() |
High Refractoriness 1580° Refractoriness 1770° Insulation Brick with Low CrO Content Images |
